Building-grade aluminum profile systems and finished door & window solutions — from V9 PRO composite windows and panoramic sliding doors to curtain-wall framing, engineered for thermal, acoustic and weather performance.
Product Overview

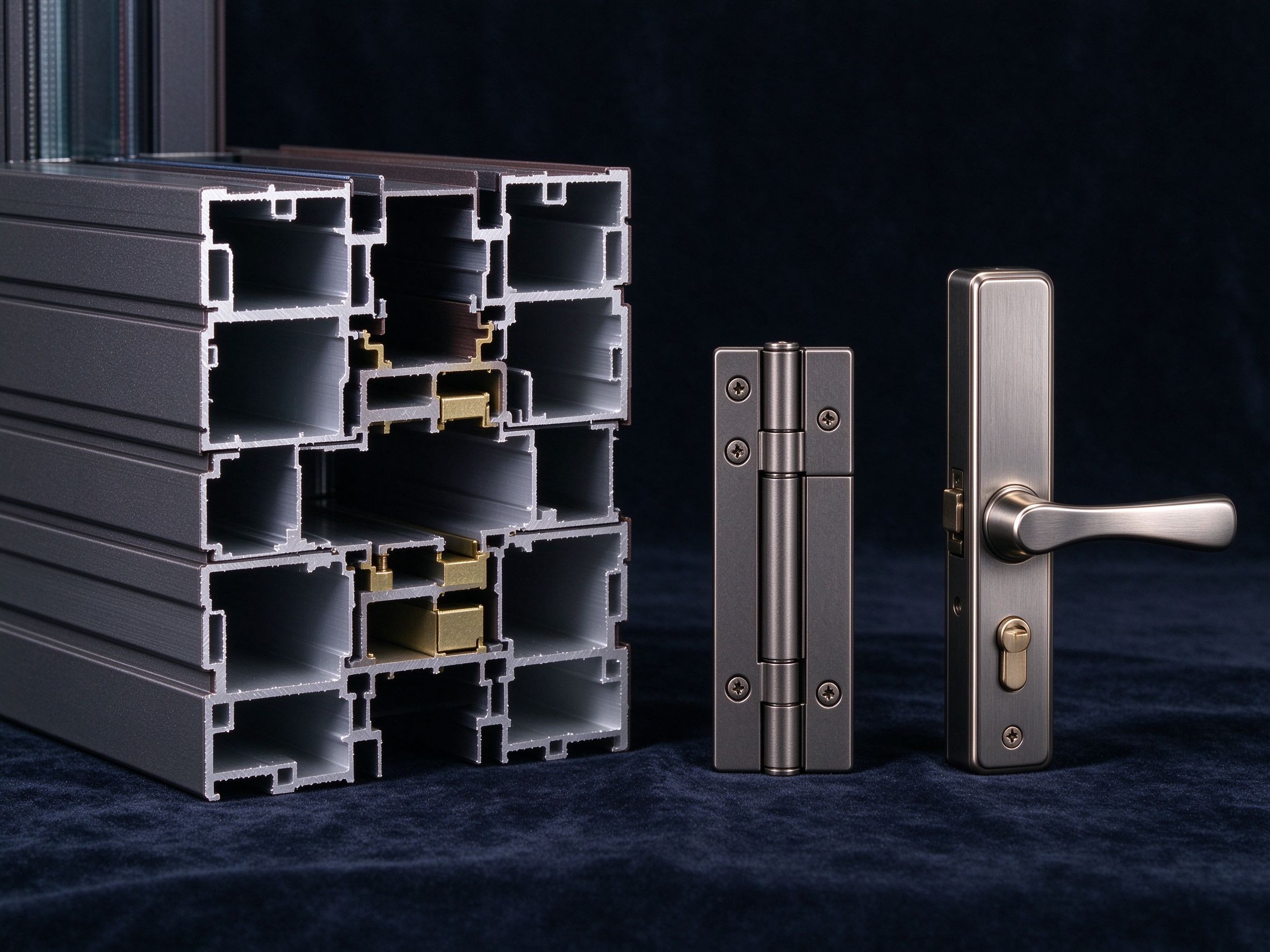

Consmos architectural profiles are extruded from 6063, 6061 and 6060 billets in T5/T6 temper and finished in-house with powder coating, anodizing or wood-grain transfer. Beyond profile stock, we supply finished systems — the V9 PRO aluminum composite window, the Boundless panoramic sliding door and the Off-Axis pivot gate — so fabricators, distributors and project buyers can source everything from one manufacturer.
Wall thickness runs from 0.6 mm to fully customized sections, with standard lengths of 3–7.25 m or cut-to-length service, all manufactured to GB/T 5237-2017.
One-stop fenestration supply: profile extrusion, surface treatment, fabrication and finished systems from a single factory — one PO, one quality standard, one lead time.
Key Features
- Building-grade alloys. 6063/6061/6060 in T5/T6 temper for structural and fenestration use
- Multi-chamber sections. Thermal-break profiles for insulation, sound control and heat retention
- Weather stable. Resists UV, rain and temperature cycling without fading or warping
- 200+ RAL colors. ΔE ≤ 0.5 color control for premium visual uniformity
- Precision tooling. 40,000+ existing molds; custom sections to your drawings
- Full fabrication. Cutting, punching, bending and welding to drawing
Finished Systems

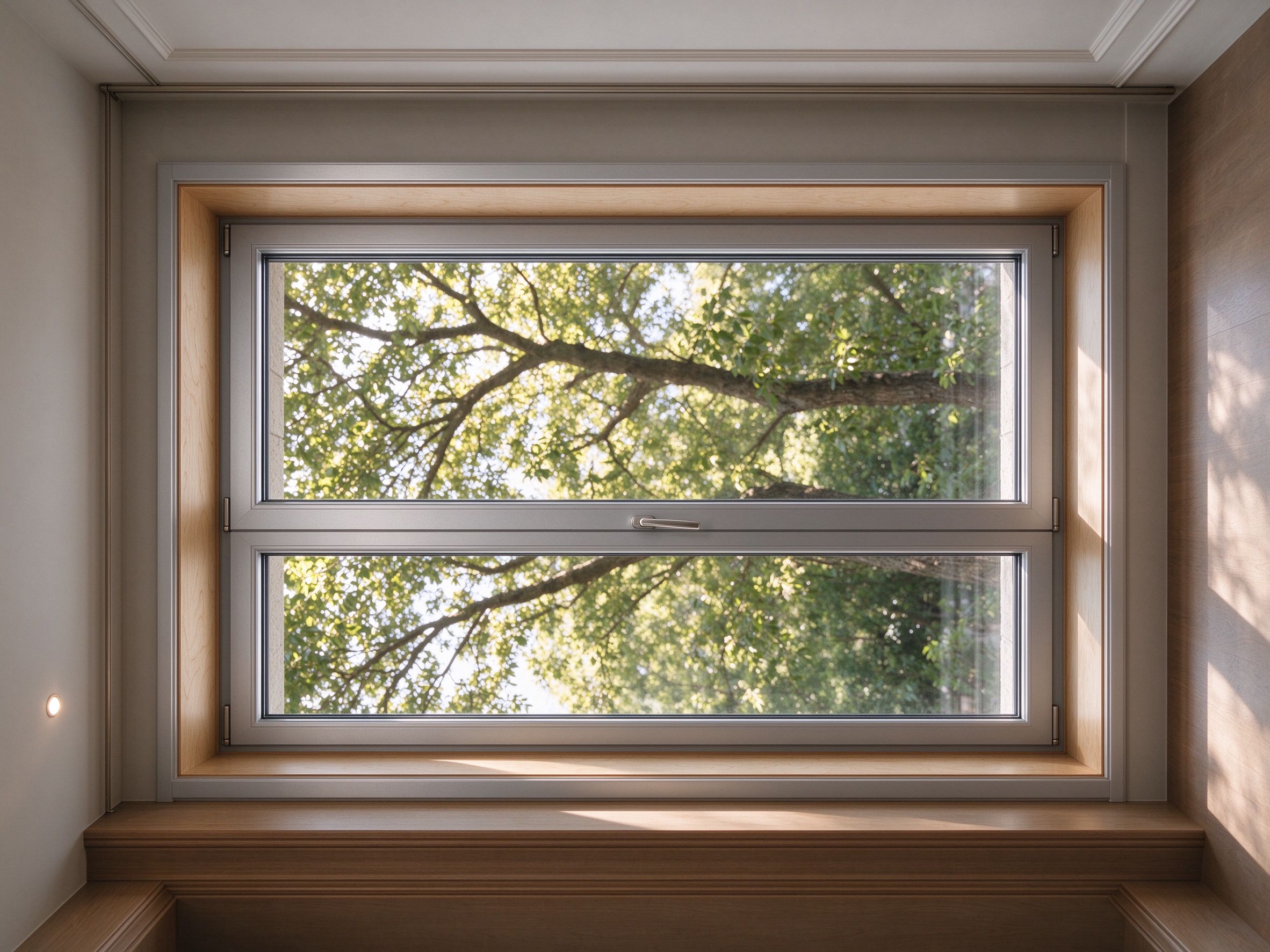

V9 PRO Aluminum Composite Windows
A 120 mm overall-depth composite window pairing an aluminum exterior with a European-maple wood interior — engineered for thermal insulation, sound insulation, heat retention, safety and integrated insect screening, with Italian Vernites water-based coatings and German HOPPE hardware.

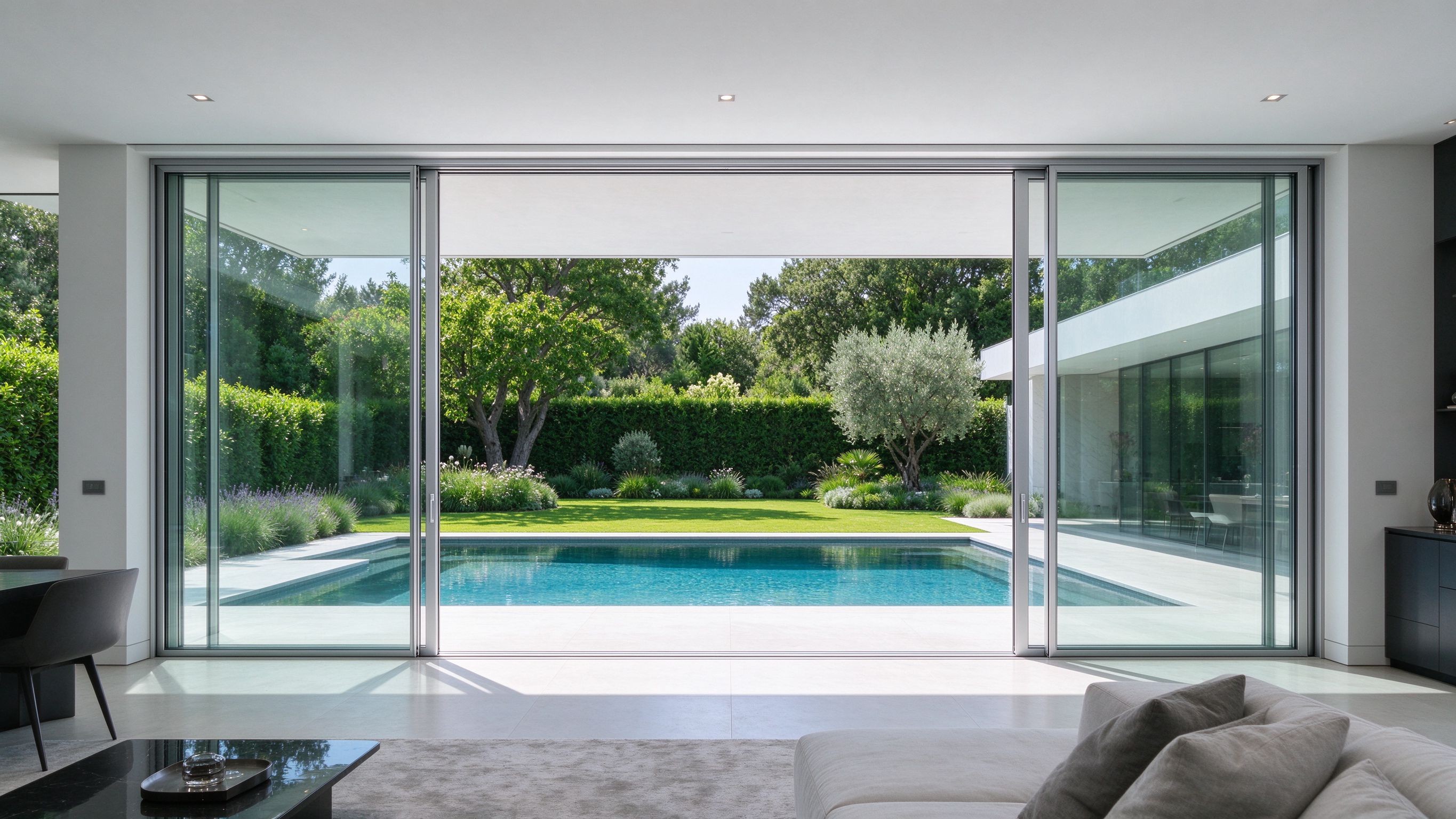

Boundless Panoramic Sliding Door
A slim-line oversized sliding system designed for maximum glass and minimal frame, with 90° frameless corner options that dissolve the boundary between interior and landscape. Automotive-grade EPDM gaskets, dual anti-sway rollers, up to 6 m H × 3 m W, 10 m² per sash and 800 kg load capacity.
- Water tightness Level 6 · Air tightness Level 8 · Wind resistance Level 8
- Sound insulation Level 4 · Thermal insulation Level 7 (subject to glass selection)
Off-Axis Pivot Gate
A statement entrance system built on top-and-bottom fixed pivots instead of side hinges — greater stability for oversized leaves, smooth auto-return, built-in soft-close & anti-pinch, and triple unlock modes (facial recognition, fingerprint scanner and remote control).

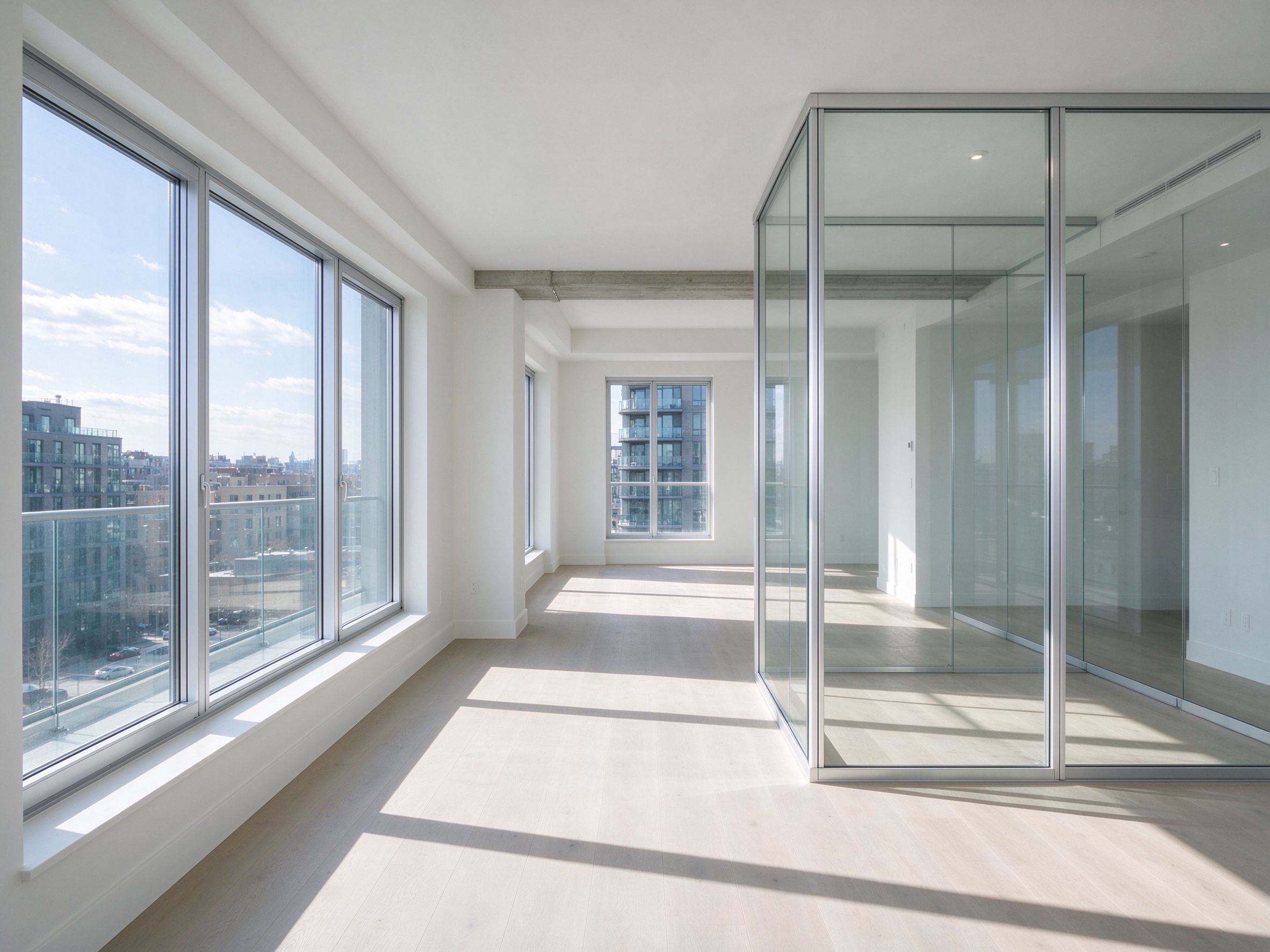

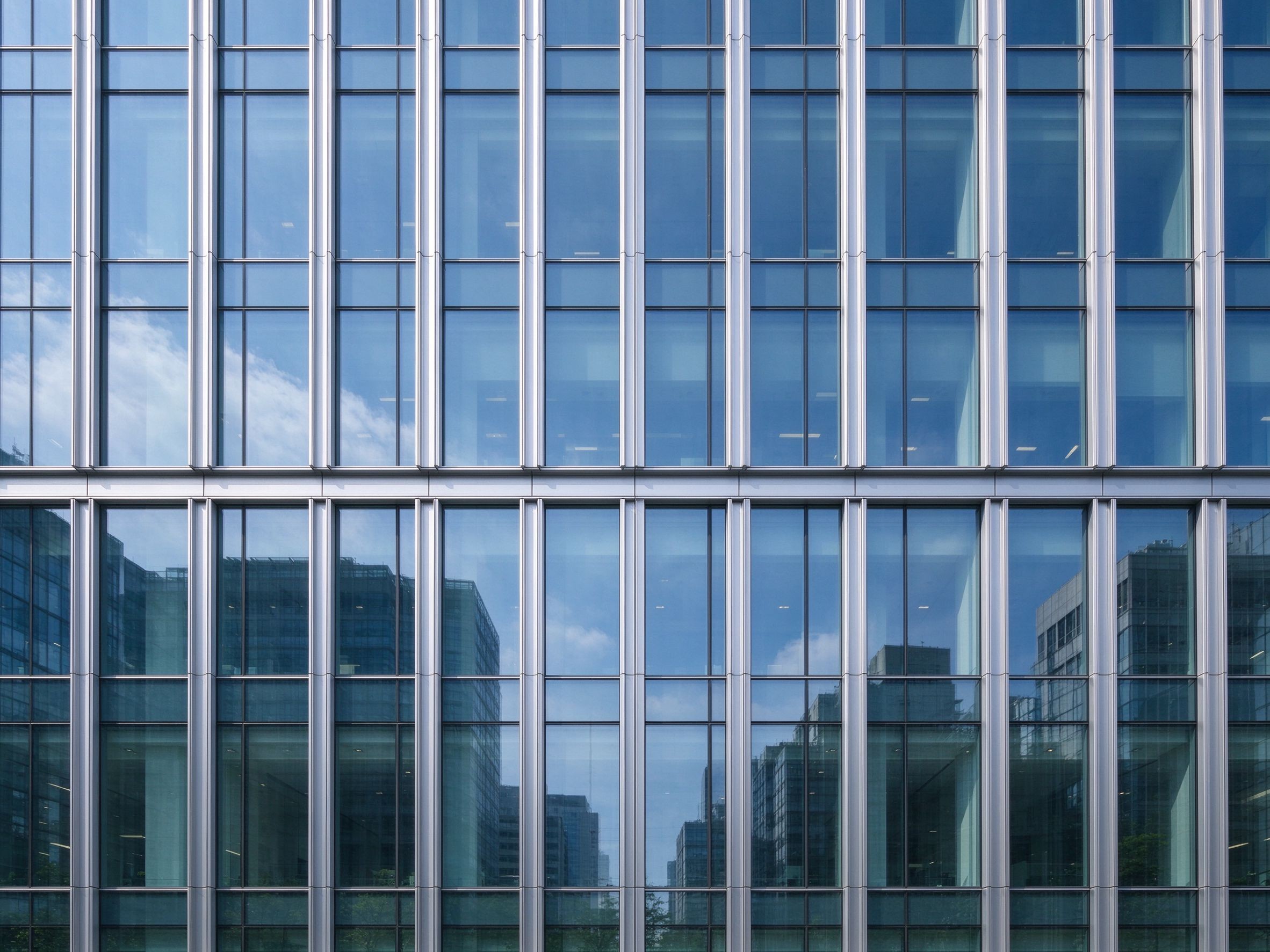

Curtain Wall & Interior Applications
From office curtain walls and storefronts to residential windows and interior glazing partitions, our mullions, transoms and framing profiles deliver clean sightlines, stable performance and consistent finishes across the whole project.
Specifications
Alloy & Temper | 6063 / 6061 / 6060, T5 / T6 |
HS Code | 760421 / 760429 |
Wall Thickness | 0.6 mm to customized |
Length | Standard 3–7.25 m, or custom cut length |
Standard | GB/T 5237-2017 |
Surface Treatment | Powder coating, anodizing, sandblasting, electrophoresis, wood-grain transfer — all in-house |
Fabrication | Cutting, punching, bending, welding; CNC by arrangement |
Mold Policy | New mold charged; refunded after 5 tons produced per mold |
MOQ | 5 tons |
Delivery | Die development & sampling 7–10 days; mass production 15–20 days after sample confirmation. FOB Qingdao. |
Annual Capacity | 100,000 tons/year |
Frequently Asked Questions
Q: Can you supply finished doors and windows, or only profiles?Both. We supply bare profiles for fabricators as well as finished systems — the V9 PRO window, panoramic sliding doors and pivot gates, cut and fabricated to order.
Q: Can you extrude our own section drawings?Yes. We hold 40,000+ existing molds and open custom molds to your drawings; the mold fee is refunded after 5 tons of production per mold.
Request a Quote
Send your section drawings, finish and quantity for a fast quotation and mold assessment. Factory-direct supply, 15-day lead time and worldwide OEM / ODM support:
- Web: www.consmosalu.com
- Email: metal2@consmos.com
- Tel / WhatsApp: +86 188 5392 1350
- Manufacturer: Linyi Consmos Metal Technology Co., Ltd. — Consmos Group, Shandong, China
