Extruded 6063/6061-T5/T6 architectural aluminum profiles and finished door & window systems — engineered for façades, fenestration and interiors, supplied factory-direct with full surface treatment and OEM support.
Product Overview

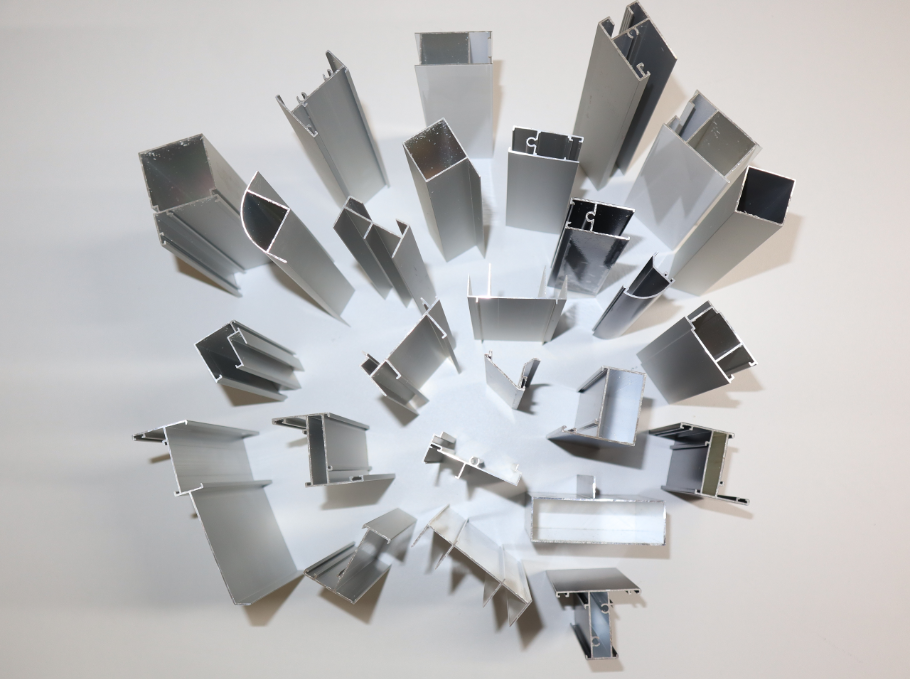

Consmos architectural aluminum profiles are purpose-built for the building envelope and interior fit-out: window and door frames, curtain-wall mullions and transoms, sunshades, skirting boards and structural trims. Extruded from national-standard 6063, 6061 and 6060 billets in T5 or T6 temper, the profiles combine tight dimensional tolerance, high structural strength and a clean architectural finish that stays stable across decades of UV exposure, rain and temperature cycling.
Beyond bare profiles, Consmos supplies finished systems — the V9 PRO aluminum composite window, the Boundless panoramic sliding door and the Off-Axis pivot gate — so distributors, fabricators and project buyers can source both profile stock and branded, ready-to-install systems from one manufacturer. Wall thickness runs from 0.6 mm to fully customized sections, with standard lengths of 3–7.25 m or cut-to-length service, all manufactured to GB/T 5237-2017.
One-stop architectural supply: extrusion, aging, powder coating, anodizing, electrophoresis, sandblasting and wood-grain transfer are all completed in-house — one PO, one quality standard, one lead time.
Key Features
- Building-grade alloys. 6063/6061/6060 in T5/T6 temper with consistent mechanical properties for structural and fenestration use.
- Weather stable. Resists ultraviolet radiation and temperature fluctuation for long outdoor service without fading or warping.
- Lightweight and strong. Density 2.7 g/cm³ — roughly one-third of steel — enabling around 40% weight reduction in frames and façades.
- 200+ RAL colors. Color consistency controlled to ΔE ≤ 0.5 for premium visual uniformity across large façade projects.
- Five surface treatments. Powder coating, anodizing, anodized sandblasting, electrophoresis and wood-grain transfer.
- Precision tooling. More than 40,000 existing molds cover a wide range of architectural cross-sections for fast project launch.
- Full fabrication service. Bending, welding, punching and precision cutting to drawing.
- Sustainable. 100% recyclable, with ≥95% strength retention in recycled alloy; green-power smelting cuts the carbon footprint by about 30%.
Surface Treatments
Finish | Characteristics | Typical Use |
|---|---|---|
Powder Coating | Vertical & horizontal lines, daily output up to 40 t; uniform, tough film in 200+ RAL colors | Window/door frames, curtain walls, exterior trims |
Anodizing | Champagne, black, copper, golden, silver and custom colors; hard, metallic surface | High-traffic and premium façades |
Anodized Sandblasting | Matte, fog-finish metallic look with a soft, fingerprint-resistant texture | Design-forward architecture |
Electrophoresis | Smooth, high-gloss, corrosion-resistant film | Coastal and humid climates |
Wood-Grain Transfer | Eco-friendly, realistic timber patterns over aluminum — the warmth of wood with metal durability | Wood-look windows, interiors, skirting |
Finished Door & Window Systems
V9 PRO Aluminum Composite Windows
A 120 mm overall-depth composite window system pairing an aluminum exterior with a European-maple wood interior, engineered for thermal insulation, sound insulation, heat retention, safety and integrated insect screening. It uses Italian Vernites water-based coatings and German HOPPE hardware for premium residential and villa projects.
- Overall frame thickness: 120 mm; wood interior in European maple
- Thermal, sound and heat insulation with multi-chamber design
- Integrated insect screen and security hardware
- Italian Vernites water-based finish; German HOPPE handles
Boundless Panoramic Sliding Door
A slim-line oversized sliding system designed for maximum glass and minimal frame, with 90° frameless corner options that dissolve the boundary between interior and landscape.
Primary Aluminum | 3.0 mm national-standard, electrostatic powder-coated |
Corner Joints | Reinforced dowel-expansion brackets with two-component adhesive and waterproof sealing |
Glazing | 32 mm tempered insulating glass, 6+20A+6 construction with black aluminum spacer |
Visible Face | 78 mm, with optional sash combinations for a sleek grand aesthetic |
Gaskets | Automotive-grade EPDM, co-extruded sponge for lasting elasticity |
Operation | Dual anti-sway rollers on the upper track — smooth, quiet, safe |
Sealing | Wear-resistant rubber strips plus pressure-equalized drainage |
Configurations | 90° frameless corners, multiple opening styles, optional safety rails; up to 6 m H × 3 m W, 10 m² per sash, 800 kg load capacity |
Ratings | Water tightness Level 6 · Air tightness Level 8 · Wind resistance Level 8 · Sound insulation Level 4 · Thermal insulation Level 7 (subject to glass selection) |
Off-Axis Pivot Gate
A statement entrance system built on top-and-bottom fixed pivots instead of conventional side hinges, giving greater stability for oversized leaves and a smooth auto-return action.
- Smooth auto-return to the 0° stop from any angle within an 80° range (±90° positioning available)
- Pivot rotation system with fixed top/bottom pivots for superior stability
- Oversized dimensions up to 6 m H × 3 m W, single leaf up to 10 m², 800 kg per leaf
- Built-in soft-close & anti-pinch for safe, gentle closing
- Triple unlock modes — facial recognition, fingerprint scanner and remote control
- Smart connectivity — wired or Wi-Fi, cloud-enabled, mobile-app operation
- Ratings: Water tightness Level 5 · Air tightness Level 7 · Wind resistance Level 7 · Sound insulation Level 3 · Thermal insulation Level 7
Aluminum Skirting Boards
Consmos aluminum skirting (baseboard) systems cover wall-floor gaps cleanly and clip on without visible fasteners. The large-coverage K-type handles uneven surfaces with up to 18 mm extra-wide gap coverage and uses a "Luban" lock mechanism for rock-solid, wobble-free assembly — a customer favourite for fast, tool-friendly installation. Classic wood-grain and integrated LED-strip versions are available.
Series | Height | Wall Thickness | Weight / m | Meters / Ton | Pcs / Bundle |
|---|---|---|---|---|---|
Large-Coverage K-Type | 6 cm | 1.0 mm | 0.175–0.19 kg | 5,250 | 120 |
Classic Wood-Grain Type | 8 cm | 0.8–0.85 mm | 0.176–0.177 kg | 5,660 | 120 |
With LED Light Strip (3 profiles) | 6 / 8 / 10 cm | 0.7–0.9 mm | 0.156–0.266 kg | 3,768 / 4,604 / 6,377 | 80 / 60 / 40 |
Specifications — Architectural Profiles
Product Name | Aluminum Extrusion Profile |
Alloy & Temper | 6063 / 6061 / 6060, T5 / T6 |
HS Code | 760421 / 760429 |
Application | Windows, doors, curtain walls, construction & decoration, skirting, industrial area |
Place of Origin | Shandong, China |
Wall Thickness | 0.6 mm to customized |
Tolerance | Customized to drawing / GB/T 5237-2017 |
Length | Standard 3–7.25 m, or custom cut length |
Standard | GB/T 5237-2017 |
Mold Policy | New mold charged; refunded after 5 tons produced per mold |
MOQ | 5 tons |
Processing | Bending, welding, punching, cutting |
Packing | Bare / protective film + shrink bag / film + craft paper / pearl wool per piece / wooden pallet |
Delivery | 15 days; payment by TT (30% deposit), LC, DP or DA |
Annual Capacity | 100,000 tons/year |
Frequently Asked Questions
Q: Can you extrude our own window/curtain-wall section drawings?Yes. We hold 40,000+ existing molds and open custom molds to your drawings; the mold fee is refunded after 5 tons of production per mold.
Q: Which finish is best for coastal or high-UV projects?Electrophoresis and high-performance powder coating offer the strongest corrosion and UV resistance; anodizing is preferred for a hard metallic look. Our team will recommend a system for your climate.
Q: Can you supply finished doors and windows, or only profiles?Both. We supply bare profiles for fabricators as well as finished systems including the V9 PRO window, panoramic sliding doors and pivot gates, cut and fabricated to order.
Q: Can color be matched to our project or brand?Yes. 200+ RAL colors are available with ΔE ≤ 0.5 control, plus wood-grain and custom color matching.
Request a Quote
Send your section drawings, finish and quantity for a fast quotation and mold assessment. Factory-direct supply, 15-day lead time and worldwide OEM / ODM support:
